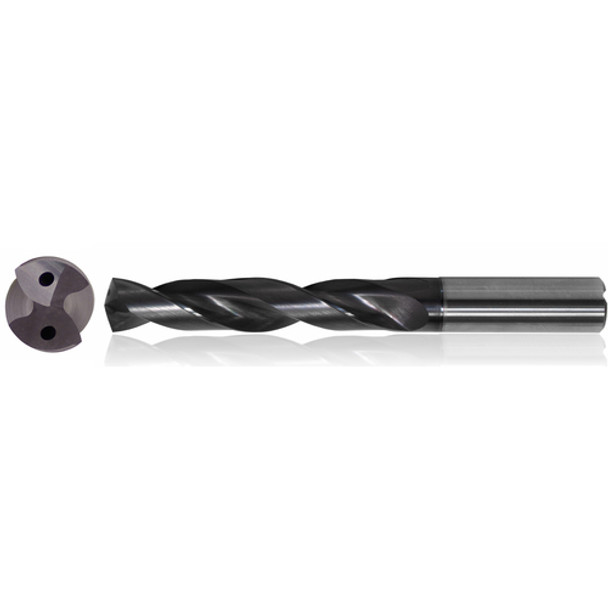

1/2" Dia. x 14 mm Shank x 60 mm Flute Length x 107 mm OAL, 3xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #NG12 MT021126308

Country of OriginUSA Drill Bit Size / Cutting Diameter (DC) 1/2" Shank Standard h6 Drill Bit Size / Cutting Diameter (DC) - Inch 1/2" Tool Type High Performance Decimal Equivalent 0.5" Flute Type Helical Length Group 3xD Measurement Type Inch Coating TiAlCN Series/List # DBIC28 Applicable Material Stainless Steel | Hard Materials Usable Length (LU) 60 mm Connection Diameter Machine Side (DCONMS) 14 mm Length Chip Flute (LCF) 60 mm Coolant Supply Property (CSP) Coolant Thru Overall Length (OAL) 107 mm Point Angle (SIG) 30 Degrees Flute Count (NOF) 2 Functional Length (LF) 60 mm Feature SINGLE MARGIN DRILL, COOLANT THRU Flute Helix Angle (FHA) 30 Degrees Cutting Direction (HAND) Right Hand Shank Type Cylindrical Body Material Carbide
