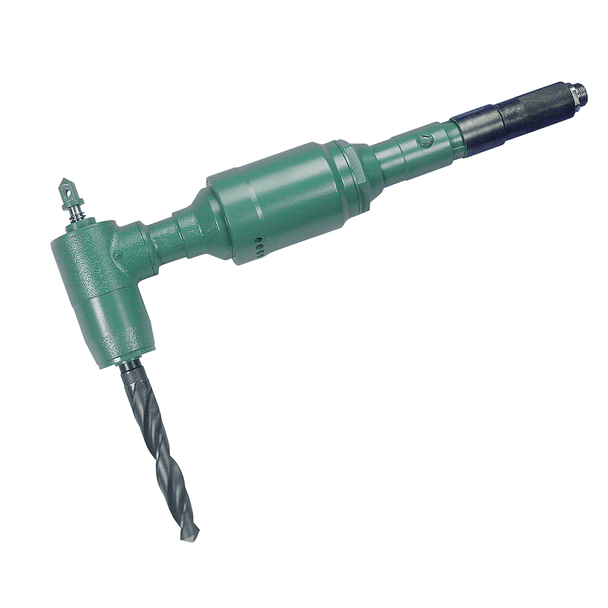

Air Corner Drill, reversible, #4 MT, 180 RPM, 3 HP, 2-1/8" capacity in steel 2 2104 0030

Drilling Capacity: Up to 2-4/25" (steel). Reaming Capacity: Up to 2" (steel). Motor Power: Up to 2.6 HP. Benefits: Delivers strong, consistent torque for reaming, enlarging, and aligning holes in steel and other metals. Built with durable housings and precision internal components designed to withstand harsh jobsite conditions, including a self closing roll throttle and a built in oiler for the motor. Long service life with minimal maintenance. Ideal for repetitive drilling and reaming tasks. Applications & Usage: Air Corner Drill compact right angle design allows operators to drill and ream in confined areas where standard drills cannot fit. Ideal for structural steel, bridge work, and fabrication environments. Pneumatic power and ATEX certification make these tools suitable for wet, dusty, or explosive atmospheres. Ideal for drilling and reaming in tight compartments, hull structures, and confined marine environments. Reaming and aligning bolt holes in girders, beams, plates, and structural connections. Additional Specs: Morse Taper: #4; Drilling (in steel): 2-4/25"; Reaming (in steel): 2"; Torque Output (ft./lbs.): 85; Load Speed (RPM): 180; Motor Power (HP): 2.95; CFM at 90 PSI: 70; Length: 10".

View the Spec Sheet for This Item

View the Operation Manual for This Item
