Drill Rig: ETN 2000 PSA w/Vacuum Pump 253 511 & fittings, Wt: 44 lbs. ETN 2001 PSV

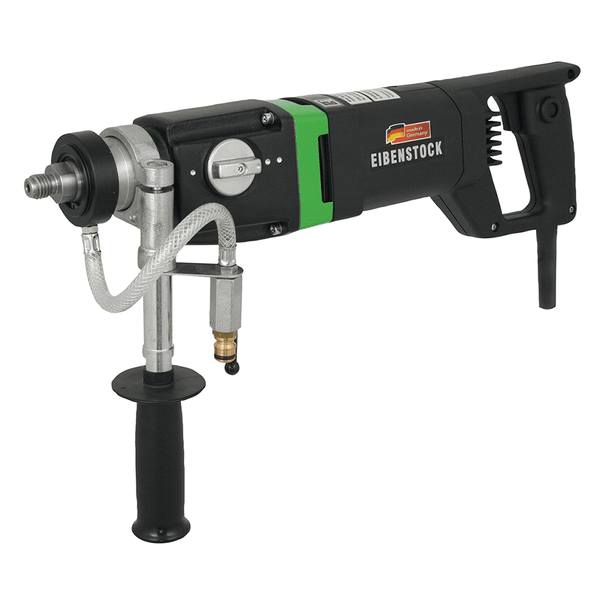

Drilling Diameter: Up to 3-1/4" (free hand) or 4" (rig). Load Speeds: 0-800 / 0-1570 RPM. Power: 15 Amp. Wet Drilling. Stand required when drilling above 3" dia. Benefits: Use hand-held or rig mounted in wet or dry environments. Two-speed oil bath gearbox provides the optimum RPM and lubrication for hole sizes up to 4-inch diameter. Electronic torque limitation and speed control guarantee constant RPM even under load. Includes many safety features to protect the operator and drill including a mechanical safety slip clutch, thermal overload switch, temperature control, GFCI over current cut off, and optical overload indicator. Water swivel collar and water supply on the gearbox extension. Replacing the water seal is easy and can be done on the job, which eliminates downtime and expensive repairs. Drill has adjustable side handle and is also designed for use with a drill stand to ensure perfectly straight, controlled drilling. Metal carrying case included. Applications & Usage: Wet/Dry Core Drill ETN 2001 P ideal for handheld drilling of brick, block, stone, concrete, reinforced concrete and asphalt. Fast drilling of blind anchor holes or thru holes. Handheld drilling up to 3" dia., rig-mounted up to 4" dia. Dry drilling in sand-lime brick, brickwork, clinker, brick and other abrasive materials. Wet drilling in reinforced concrete, natural stone and asphalt. Plumbing, heating and ventilation construction, civil engineering, landscape construction.

View the Spec Sheet for This Item

View the Operation Manual for This Item
