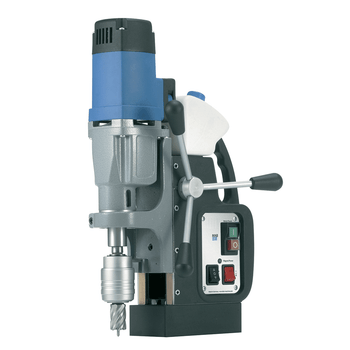

Mab 485 and Mab 485 Sb, 110 V, RM MAB 485-RM

Cutter Capacity 2-1 16 Diameter. Twist Drill Capacity 7 8 Diameter. Stroke 6-1 3. Morse Taper MT2. Reversible motor for tapping (15 16 ) and reaming (7 8 ). Speed Ranges (RPM) 50-250 100-450. Magnetic Force 3750 lbs. Quick-change keyless cutter system. Equipped with Electronic Safety Shutoff Sensor. Optional Swivel Base. MAB 485 SB. New case study - Drilling titanium 747 wing beams with the MAB 485. Benefits. Powerful 10.5 Amp motor delivers strong, reliable drilling performance for medium to heavy duty steel fabrication and industrial applications. Quick-change keyless cutter system. Integrated cutting oil reservoir. Integrated lubrication system ensures smooth drilling, reduced heat, and extended cutter life. Internal cable routing for damage reduction. Simple, ergonomic arrangement of controls for one-handed operation. SafeMag(TM) Green Red LED magnetic force indicator for safe operation. CoolMag(TM) Magnet overheating protection. Emergency-off function electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment. Applications and Usage. MAB 485 and 485 SB for drilling holes in structural steel, plate, beams, and fabricated assemblies. Ideal for shop or field fabrication requiring fast, accurate holemaking. Vertical, horizontal, and overhead drilling on I-beams, columns, and steel frameworks. Perfect for installing brackets, supports, and bolted connections. Onsite drilling for equipment repair, retrofits, and plant maintenance. Suitable for industrial facilities, refineries, and power plants. Drilling mounting holes for piping, conduit supports, HVAC brackets, and mechanical systems. Supports heavy duty installations requiring precise hole placement. See Recommended Speed and Feed Charts for Annular Cutters.

View the Spec Sheet for This Item

View the Operation Manual for This Item
