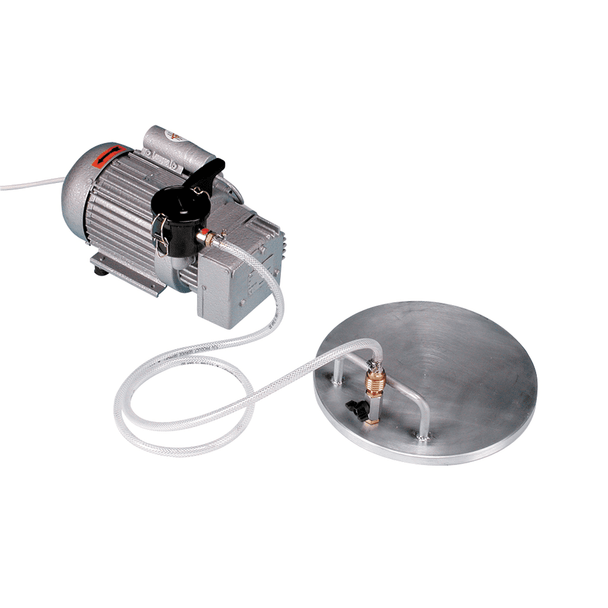

Vacuum Plates For Magnetic Drills, Vacuum Plate Only, channeled, N ZAV 301 N

Vacuum Plate for Channeled Plates. Vacuum Plate for Smooth Surfaces. Benefits. Both plate types use a high performance vacuum pump with circular oil lubrication, ensuring strong, reliable suction and long service life. Channeled plate model features an 11.8 clamping plate diameter, providing stability for drilling operations. Clamping plates with two suction surfaces and cut-through drilling area. ZAV 301 ZAV 310 optimized for channeled plates. ZAV 401 ZAV 410 optimized for smooth surfaces with two suction surfaces and a cut through drilling area. Applications and Usage. Vacuum Plates are for applications where drill alone will not adhere to surface. Useful in fabrication shops working with mixed materials or specialty metals. Supports precision drilling on smooth or channeled plates. Particularly valuable when working at heights or on surfaces where magnetic adhesion is impossible.
