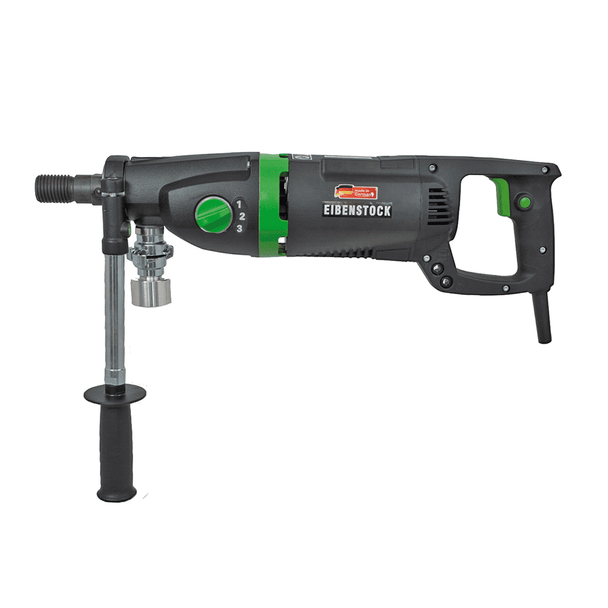

Wet/Dry Core Drill ETN 162/3 P, Drill with Stand, 220 V ETN 162/3 PSA-220 V

Drilling Diameter Up to 8 (brick block - dry) and 6-3 8 (concrete - wet). 3-Speed Gear Box 0-510 0-1150 0-2500 RPM. 1-1 4 UNC Spindle and 5 8 UNC Adapter. Power 19.5 Amp. Stand required when drilling above 3 dia. in Concrete. Benefits. Wet or Dry Diamond Core Drill with a Water Swivel and Dust Extraction Port built directly into the spindle. 3 speed oil bath gearbox - allows precise speed selection and optimal lubrication in all working positions. Mechanical safety clutch protects the motor and enhances operator control. Built in combination spindle with integrated connection for centering rod 1-1 4 x 7 UNC spindle 5 8 x 11 UNC adapter included. Changing system for fast conversion between wet and dry applications. Integrated leveling bubbles on the machine and hole center indicator allow for precise drilling. Quick-mounting system allows the motor to be connected to the drill rig without the need for tools. Rig can be adjusted to 45 degrees. Feed handle can also be changed without the use of tools. Compact combination base allows drill to be fixed with anchor or vacuum (vacuum pump required). Temperature control and overcurrent cut-off, optical overload indication, and constant speed increase drill life and keep operator safer. Includes service-LED that lets you know when the carbon brushes need changing (works for approx. 10 working hours before shutdown). Applications and Usage. Wet Dry Core Drill holes up to 8 diameter hand-held dry drilling in masonry, brick and block. Handheld drilling up to 3-1 4 diameter in concrete and 6-3 8 diameter with stand. Ideal for drilling through reinforced concrete slabs, walls, beams, and columns. Supports controlled coring for openings, cutouts, penetrations, and selective demolition in concrete and masonry. Suitable for extracting concrete core samples for engineering analysis, quality control, and structural assessment.
